Hard-Coated Low-E

Product description

Parameters

Hard-coating Low-E glass is also called pyrolytic glass, also known as online coated glass, The Low-E coating is applied on a substrate of clear float glass or low iron float glass by a pyrolytic process called CVD (Chemical Vapour Deposition) technology. It has stable chemical and mechanical performance with high light transmission, high durability and easy processing.

Product range:

Thickness: 3mm to 12mm

Sizes: 2134x3300mm, 2440x3300mm and 3300x5100mm.

Applications:

Windows and doors

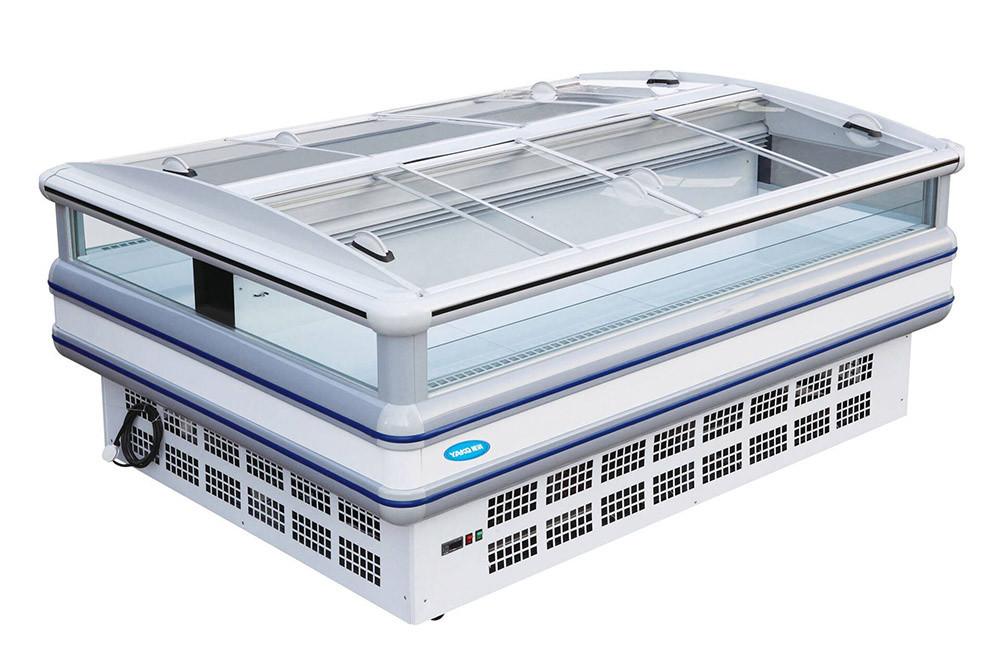

Freezers, ovens, wine cabinets, other white appliances

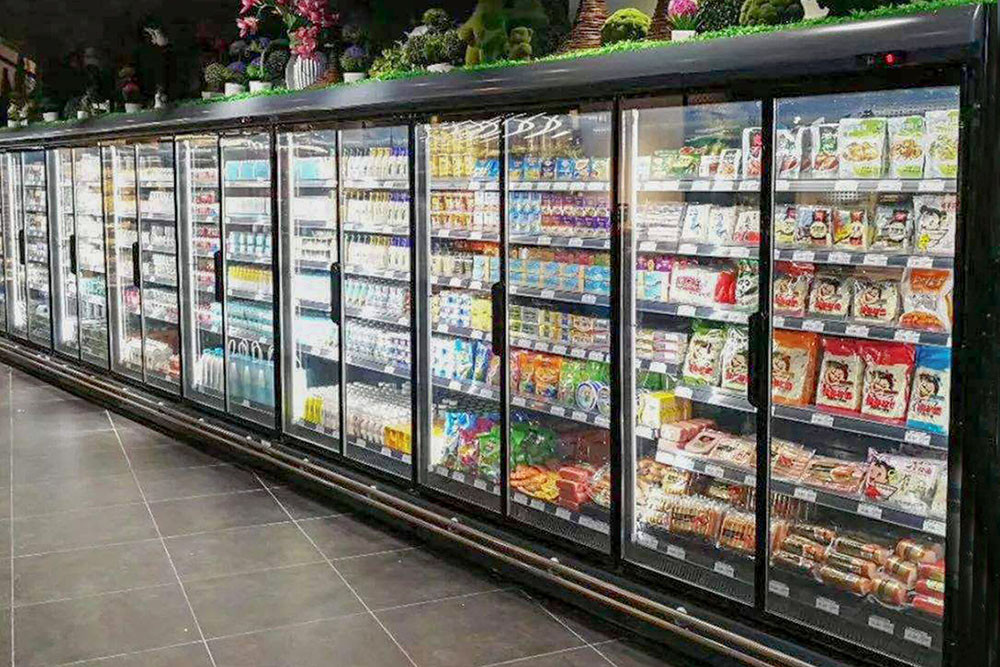

Beverage cabinet, display cabinets, refrigerated cabinets

Electro Chromic, LED display screen.

Technical parameters of on-line normal clear Low-E glass

Tks	Visible light			Sunlight		U-value		(SHGC)	(SC)
mm	Trs	Rel		Transmissivity %	reflectivity%	winter	summer
		Ext.	Int.
4	83	10	11	72	11	3.7	2.9	0.8	0.87

4mm Clear float Online low-E glass

Performance parameter	Dates	Test method
Tvl(%)(380-780nm)	≥83%	Lambda950
Rvl(%)	≥10%	Lambda950
(Ω/口)sheetresistance	≤12	standard four point probe
Color uniformity	△Eab'<1	GB11942
Heat Emissivity	0.171	AE1/RD1 hemisphereemissivitvtester

Technical parameters of on-line normal clear Low-E glass

Thickness	Visible light			Sunlight		U-value		Solar heat gainco-efficient(SHGC)	Shadingco-efficient(SC)
mm	Transmissivity %	reflectivity%		Transmissivity%	reflectivity%	winter	summer
mm	Transmissivity %	Ext.	Int.	Transmissivity%	reflectivity%	winter	summer
4	83	10	11	72	11	3.7	2.9	0.75	0.87
5	82.5	10	11	70	11	3.7	2.9	0.74	0.85
6	82.5	10	11	70	10	3.7	2.9	0.71	0.82
8	81.5	10	11	67	10	3.7	2.9	0.71	0.82

Technical parameters of on-line ultra clear Low-E glass

Thickness	Visible light			Sunlight		U-value		Solar heat gainco-efficient(SHGC)	Shadingco-efficient(SC)
mm	transmissivity%	reflectivity%		transmissivity%	reflectivity%	winter	summe
mm	transmissivity%	Ext.	Int.	transmissivity%	reflectivity%
4	84	10.5	11.5	75	11.5	3.7	2.9	0.82	0.95
5	84	10.5	11.5	75	11.5	3.7	2.9	0.81	0.94
6	84	10.5	11.5	75	11.5	3.7	2.9	0.80	0.93
8	83	10.5	11.5	72	11.5	3.7	2.9	0.77	0.89
